| Model | Standard Dimension(mm) | Optional Dimension(mm) | Shape & category |
| EB-PL3030 | 295*295 (1ft*1ft) | 300*300 | Small square panel light |
| EB-PL6030 | 595*295 (2ft*1ft) | 600*300 | Rectangle |
| EB-PL6060 | 595*595 (2ft*2ft) | 600*600, 603*603, 620*620 | Standard square (hot sales) |
| EB-PL12030 | 1195*295 (4ft*1ft) | 1200*300 | Long panel light |
| EB-PL12015 | 1195*145 (4ft*0.5ft) | 1200*150 | Long |
| EB-PL12060 | 1195*595 (4ft*2ft) | 1200*600 | Large panel light |
The other dimension such as 600*150mm, 1200*200mm, 1200*1000mm, 1200*1200mm, 1200*800mm can be customized

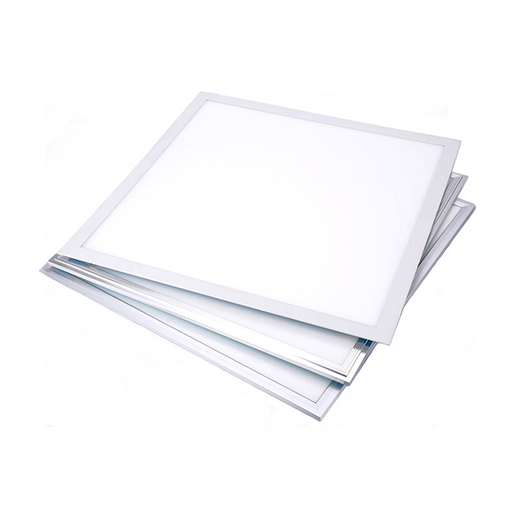

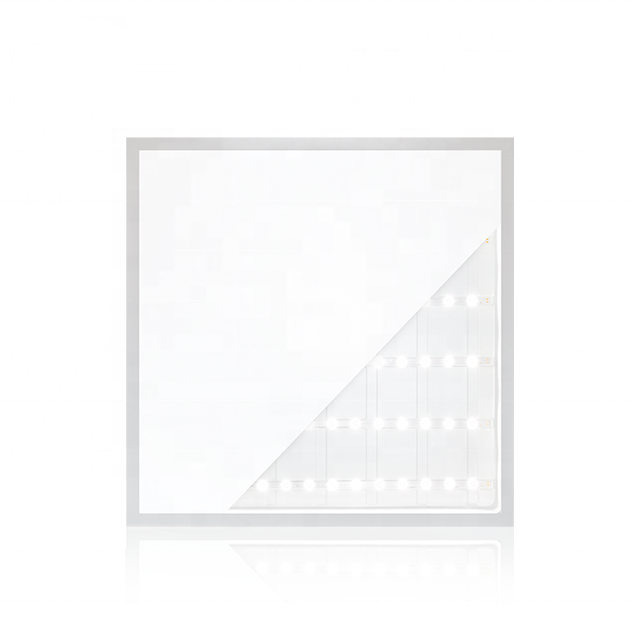

EB-PL6060 series is our hot sale led panel light with back-lit LED technology and specialized optics to create beautiful, high-quality and versatile products. It is the main item and most competitive flat ceiling light in markets. Top-quality but reasonable price. Available 40W 48W 60W in wattages. It is the best choice to do commercial lighting projects or for sales by retailers, wholesalers.
Materials & Finished
Heat sink (Housing): Metal bottom, 2.5mm thickness-3mm thickness, white finished.
Frame: Square shape aluminum trim, strip/flat type, white finished as standard, black/silver option.
Diffuser/cover: Polystyrene PS Cover, 1.0mm thickness, High temperature resistance, no yellowing, high light transmittance.
Lens: High temperature resistant optical lens, uniform light emission
PCB: High thermal conductivity aluminum substrate
Light source: Bridgelux/Samsung SMD LED Chips, 100lm/W output.
Transformer: Non-dimmable external isolated driver, Over-voltage, over-temperature, anti-surge protection.
Additional Options
TRIAC/0-10V/DALI dimmable
Emergency backup (30% power with 1hrs 2hrs or 3Hours duration)
Electrical & Optical
Dimension: L595*W595*H31mm
Input voltage:100-265VAC 50/60Hz
Power Factor:>0.9
LED Chips: SMD2835
Color rendering index:>80
Lumens:100lm/W
THD:<15%
Surge protection:1-2KV
SDCM:<5
Efficiency:>89%
IP Rating: IP22 Indoor use
Beam angle: 120° wide
Color temperature: 3000K/4000K/6500K
Working temperature:-25℃/+55℃
Compliance: CE RoHS Certified
Manufacturer Warranty:2/3/5Years.
Installation & Mounting
Recessed installation is standard version, just put it onto grid-ceiling, easy installation.
Suspension installation is available, but the steel ropes for hanging needs to be ordered additionally.
Surface mounted installation is ok with extra surface frame fitting.
Clip installation with springs available, just tell our sales if you request this.
