ModelStandard Dimension(mm)Optional Dimension(mm)Shape & category
EB-PL3030295*295 (1ft*1ft)300*300Small square panel light
EB-PL6030595*295 (2ft*1ft)600*300Rectangle
EB-PL6060595*595 (2ft*2ft)600*600, 603*603, 620*620Standard square (hot sales)
EB-PL120301195*295 (4ft*1ft)1200*300Long panel light
EB-PL120151195*145 (4ft*0.5ft)1200*150Long
EB-PL120601195*595 (4ft*2ft)1200*600Large panel light

The other dimension such as 600*150mm, 1200*200mm, 1200*1000mm, 1200*1200mm, 1200*800mm can be customized

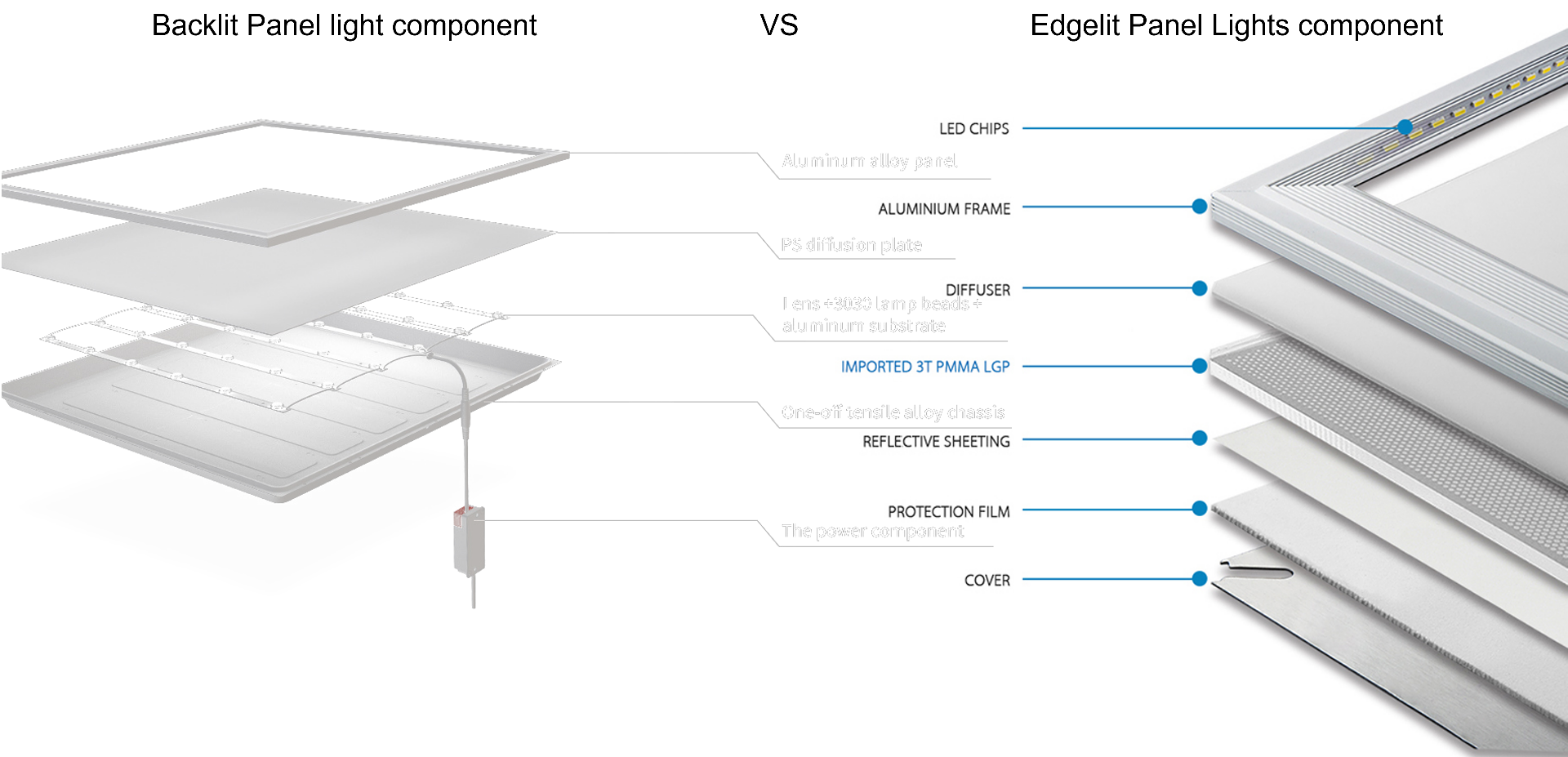

LED panel lights are mainly divided into two types, slim side-emitting, and back-emitting, and their components are different. The structure is as follows:

新建 PPT 演示文稿_01.png

  • Physical Properties

MaterialsAluminum frame, white/silver/black finished+ Anti-UV LGP without any yellowing issues
Input voltage110V-220VAC 50/60Hz as standard, but the low voltage like DC12V 24V 36V 48V 60V is available
LED ChipsEpistar/Bridgelux/Philips/OSRAM/Samsung SMD LED Chips
Lumens90-100lm/W, 100-120lm/W, 120-140lm/W solution optoins
CRI(Ra)>80, or >90
SDCM<5 OR <3
Power factor>0.9
Color temperature2700-3000K warm white, 4000-4500K daylight, 5000-5500k natural white, 6000-6500k cold white
THD<20% as standard, but <15% or <10% available
Surge protection1KV-2KV, 4KV available
Working life>50000Hrs. lifetime up to 10years
Working temperature-25℃/+55℃
Storage temperature-30℃/+60℃
Manufacturer warranty2/3/5/7/10Years options


Customization Service


Improve your projects with custom colors, brightness, sizes, beam angels, and materials.


Tell us your demands, and we will customize the wattage, color temperature, motion sensors, and lumens.

Frequently Asked Questions

We’re here to help! Here are answers to questions we get asked the most about commercial Panel LED lighting.

Control System

We will make each part stand out with a different light effect and control system.


Get your order in the customized packages using the material and method of your choice.

What is an LED panel light?

The LED panel light is a type of lighting fixture designed to replace conventional fluorescent ceiling lights. It has been widely used for some time now, but these new types have only recently come onto the market due in part to their sleek look and innovative features – like remote control options!

What are LED panels used for?

The sleek, slim profile of LED panels makes them an attractive option for replacing existing fluorescent lights. They require less space than traditional styles and have a more even illumination which is better for reading or working on your computer at night without any lighting distractions from hunter monsters underlit by cheap fluorescents!

Which is better panel light or downlight?

This entirely depends on what your space needs. Panel lights are best for commercial and industrial use, with them being used to illuminating open spaces in large buildings evenly. On the other hand, downlights are mainly used for home lighting — in line with the concept of home design styles.

How does LED panel lighting compare to traditional fluorescent lights?

LED light panels have an estimated lifespan of 100,000 hours. LED bulbs last approximately 12 times longer than compact fluorescent lighting.

LEDs also have less lumen depreciation — which means that the quality of light will diminish over time but will never suddenly fail to work like other bulbs.

In what sizes are the LED ceiling panels available?

Our standard panels come in 600×1200, 300×1200 and 300×600.

With our strong customization capabilities, rest assured that we can custom-made panels in any size for you!

Are LED panel lights dimmable?

Yes, LEDs can include smart technology so you can control brightness and timed usage.

What is the difference between an LED Troffer and a LED Panel?

The biggest difference is its profile. LED troffers are thicker and are usually center-basket so they’re usually installed in deep ceilings. On the other hand, LED panels are very thin — making them ideal for shallow ceiling applications.

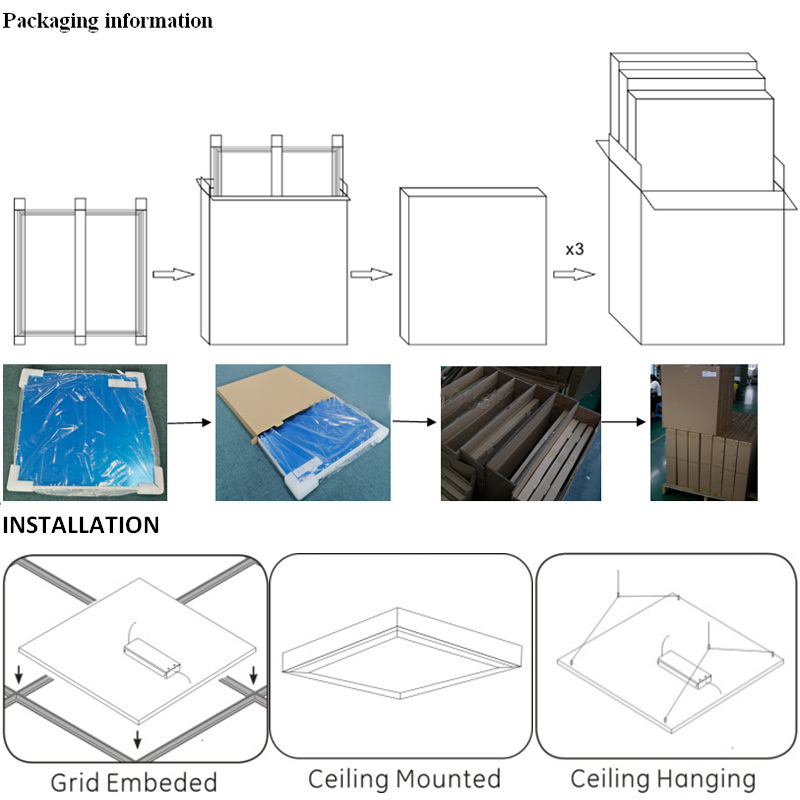

How do you install LED light panels?

LED light panels can be installed in 3 ways. First, you suspended them through the ceiling. You can replace a ceiling plate or a built-in fluorescent fixture 1 on 1 with an LED panel. Remove the fixture from the ceiling, place the LED panel and connect it to the mains.

Second, through construction. You can install an LED panel on a flat surface (ceiling or wall) using a mounting frame—lastly, a suspension. You can place them using a suspension set consisting of a kit with cables to hang on the ceiling.
