ModelStandard Dimension(mm)Optional Dimension(mm)Shape & category
EB-BL3030295*295 (1ft*1ft)300*300Small square panel light
EB-BL6030595*295 (2ft*1ft)600*300Rectangle
EB-BL6060595*595 (2ft*2ft)600*600, 603*603, 620*620Standard square (hot sales)
EB-BL120301195*295 (4ft*1ft)1200*300Long panel light
EB-BL120151195*145 (4ft*0.5ft)1200*150Long
EB-BL120601195*595 (4ft*2ft)1200*600Large panel light

The other dimension such as 600*150mm, 1200*200mm, 1200*1000mm, 1200*1200mm, 1200*800mm can be customized



Inquire

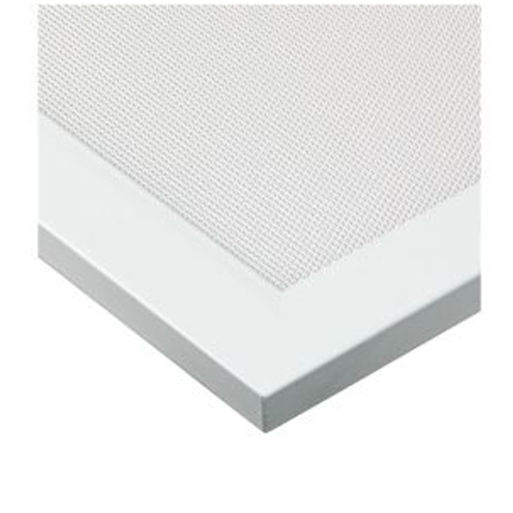

BACKLIT LED PANEL

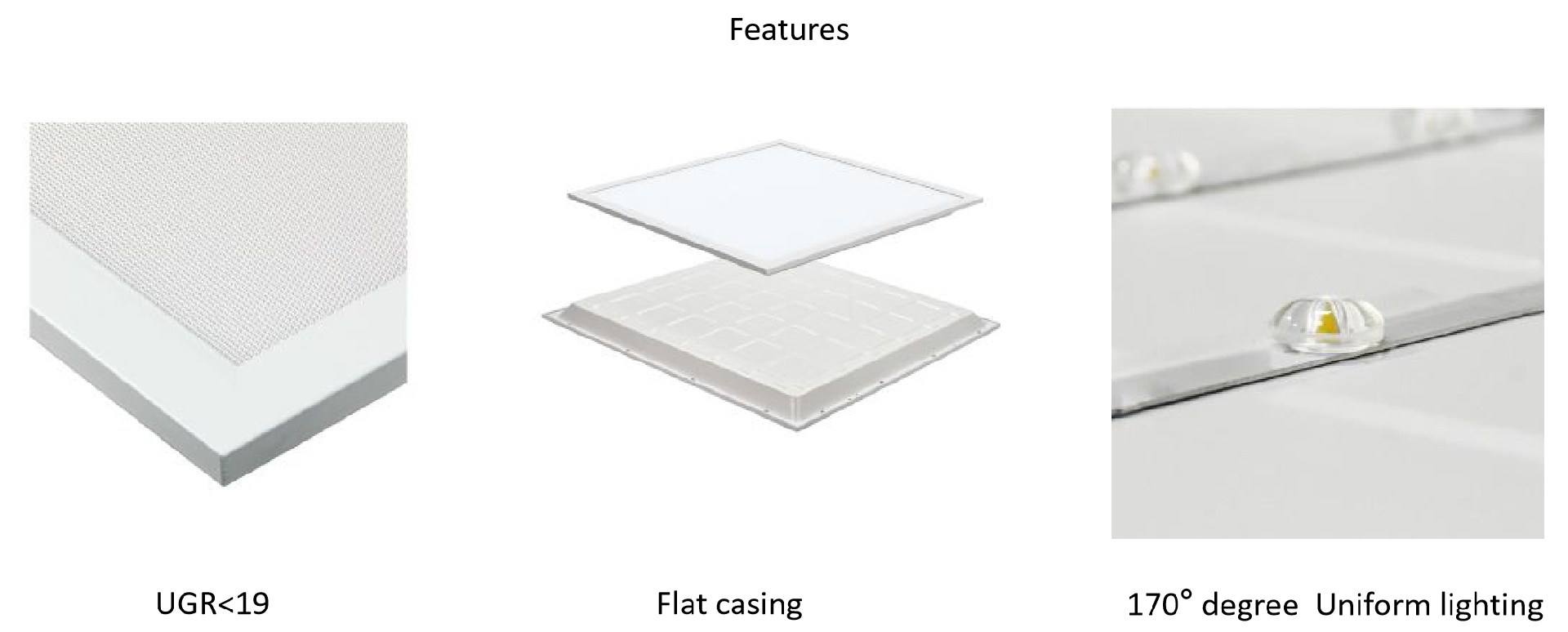

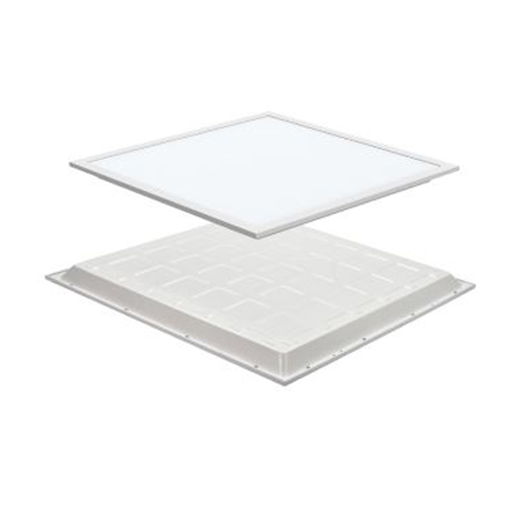

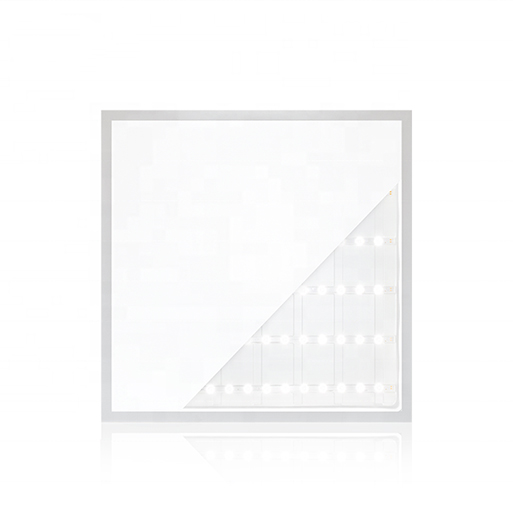

-New designed ultra flat casing: Cancel the LGP, no yellow changing problem.

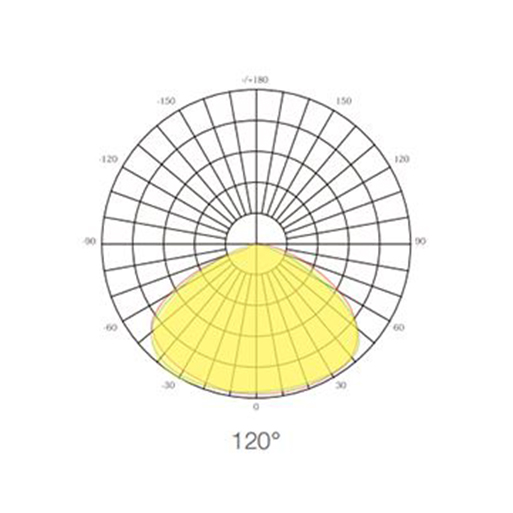

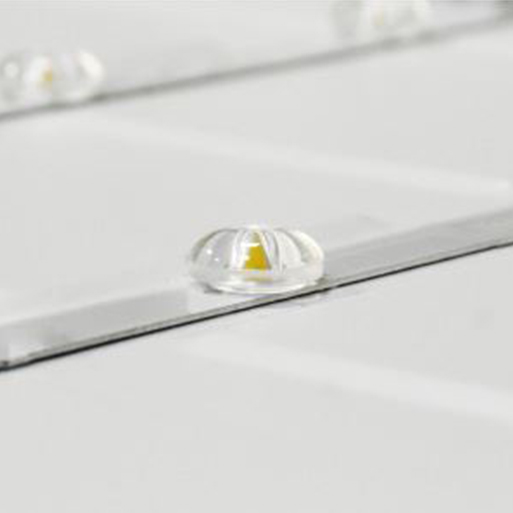

-To assure a perfectly homogeneous light distribution without dark spots, we use specially made lenses with 180° degree beam angle. This allows the light to be dispersed evenly inside the fixture and assures a shadow free appearance.

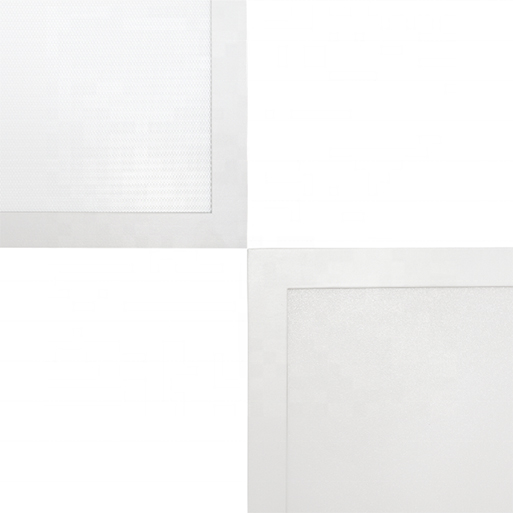

- 600*600mm, 620*620mm, 1200*300mm, 1200*600mm as standard size, 105lm/w, 130lm/w with Prismatic UGR<19.

- Optional Accessories:

Tri-Color available (CCT adjustable)

Drivers: Regular On/Off driver, 1-10V dimmable or DALI dimmable

3H Emergency power supply

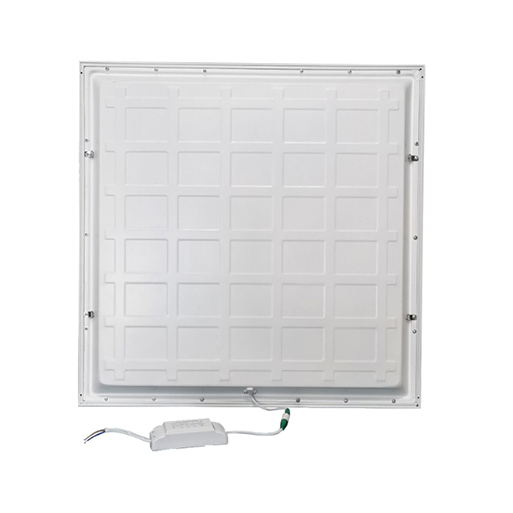

Item
595x595 600x600 LED Back Light
Power
36w / 40w
PF
0.9
Input Voltage(V)
AC 220V( ± 10%)
Color Temperature(CCT)
3000-6500K
LED Light Source
SMD2835
Lamp Luminous Efficiency(lm/w)
80-110lm/w, according to customer requirement
Color Rendering Index(Ra)
80
Lamp Luminous Flux(lm)
3000-4000

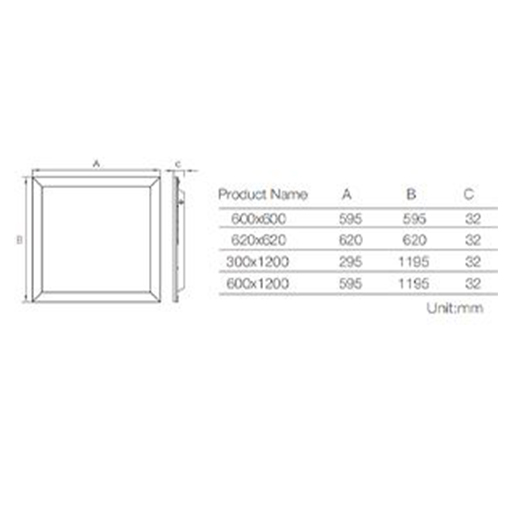

Dimension
595x595x30mm
Material
Aluminum Frame + Iron back cover+ PS Diffuser
Driver
Isolated and Certified Driver, according to customer actual needs
Warranty(Year)
3~5-Year, according to customer requirement
Dimmable
Customized
Installation
Recessed/ Surface Mounted/ Hanging
Application
Home/ Office/ Shopping mall / Meeting Room / Clean Room/ Classroom

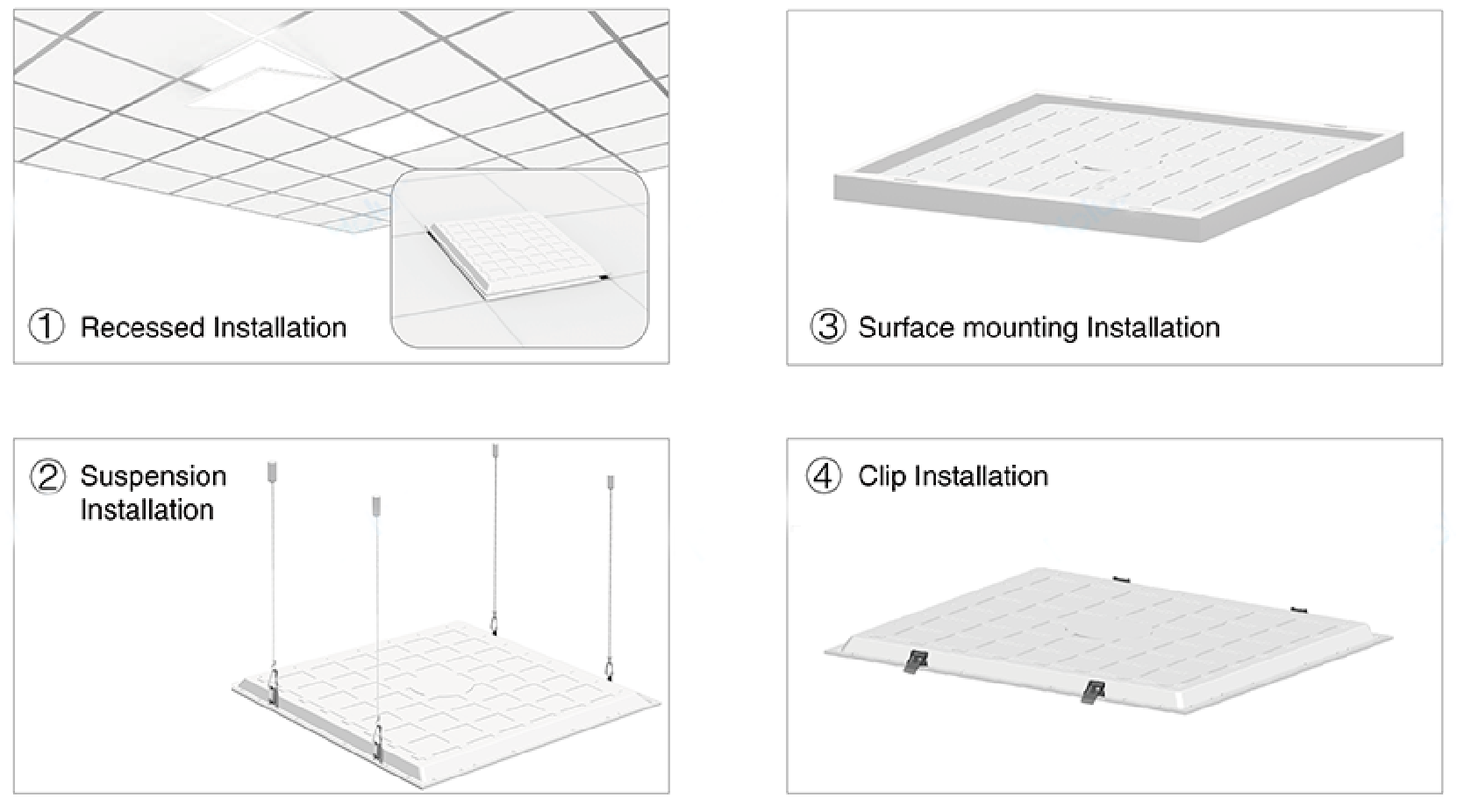

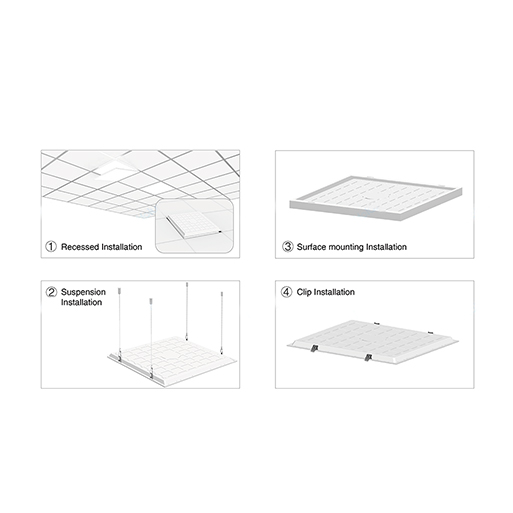

INSTALLATION

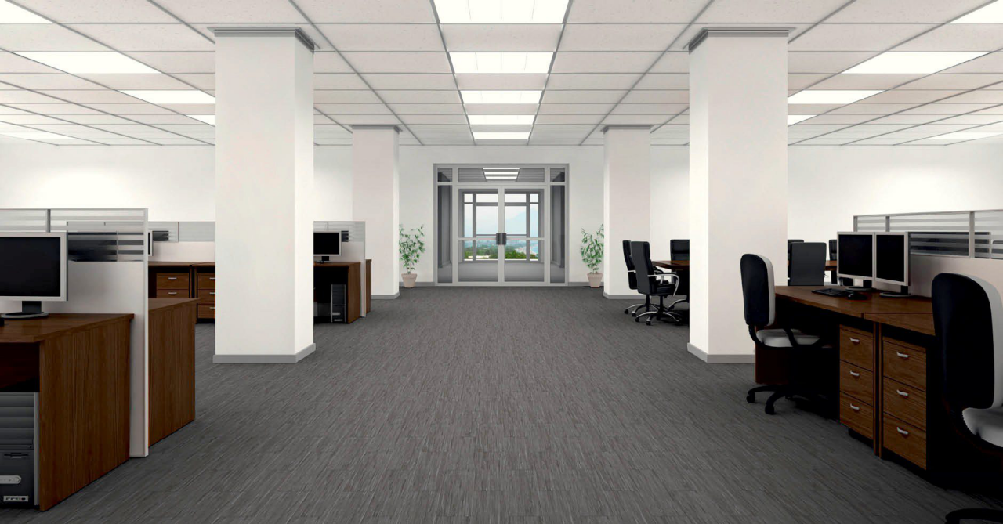

APPLICATION


> Replacement for fluroescent grid

> Office/ school

> Hospitals /Retails

> Corridors /Stairwells
